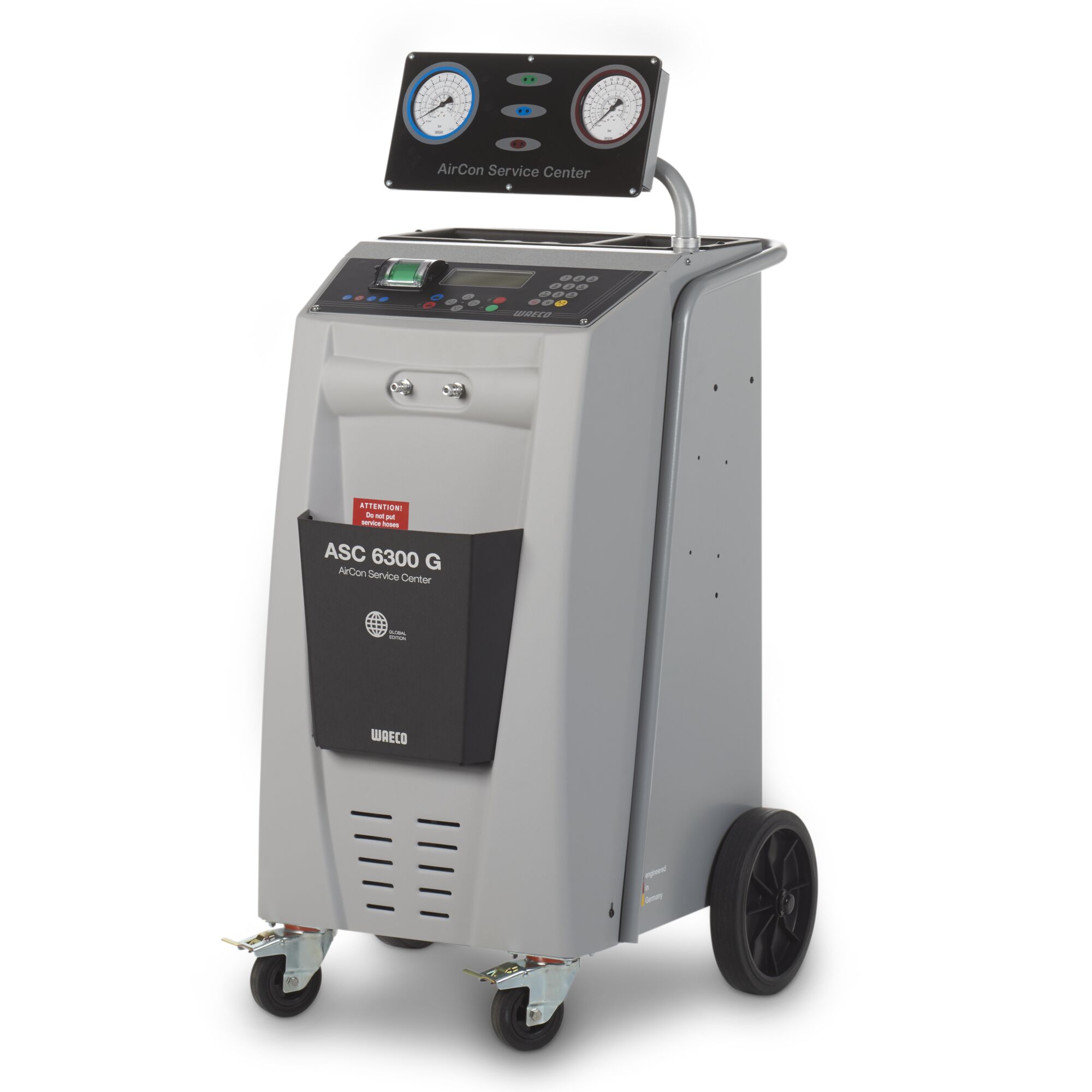

WAECO ASC 6300 G

AIR CONDITIONING SERVICE UNIT, TRIPLE CERTIFIED, 16KG

Fully automatic triple certified A/C service unit for minimum 95 % refrigerant recovery with integrated charging amount database, practical display, heated charging cylinder, printer, patented oil and UV-dye charging system and more. ASC can be turned into a service unit for either R134a, R1234yf or R513A refrigerants, depending on the appropriate hose kit of your choice (sold separately).


A/C service work is performed fully automatically, with little operator effort. All standard ASC-series features are provided, including refrigerant charging and recovery management, personalised charging amount database and automatic vacuum check. The ASC 6300 G can be added with an external refrigerant analysis tool.

Key Features

  • Fully automatic A/C service – saves time and effort in the workshop
  • Humidity-free storage and feeding system for fresh oil and UV additive supplied with the associated hose kit (sold separately)
  • Optional external gas analyser prevents dangerous refrigerant mixtures
  • Integrated refrigerant charging and recovery amount management
  • USB interface for convenient software update or export of service data
  • Database with personalised charging amount for 100 different vehicles
  • Complies with SAE J 2099, 2788 and 2843

Technical Details

  • Dimensions 560 mm × 1300 mm × 650 mm (WxHxD)
  • Weight 110KG
  • Hose Length 3.0M
  • Refrigerant Type R134a, or R1234yf, or R513a

£3,676.05 + VAT

Includes:
